JB 305- E Video Door Phone with Two way communication, 7inch TFT LCD and Camera with Night Vision LEDs

Intercom system for home, for easy monitoring of visitors. Use with Home automation system and Smart Locks.



• The Video Door Phone facilitates two way communication. It can connect to up to 2 Outdoor units and 4 Indoor units for single family.
• It can be paired wireless with Yale Smart Door Lock and electro-mechanical Lock- through which lock can be opened from the indoor unit itself.
• Facilitates simultaneous Monitoring and talking with a visitor. Supports Point-to-point intercom and broadcast function
• JB 305 E comes with 7 inch ABS-panel indoor monitor with touch buttons and 16 mm thin design. Indoor Monitor has 800*480 resolution.

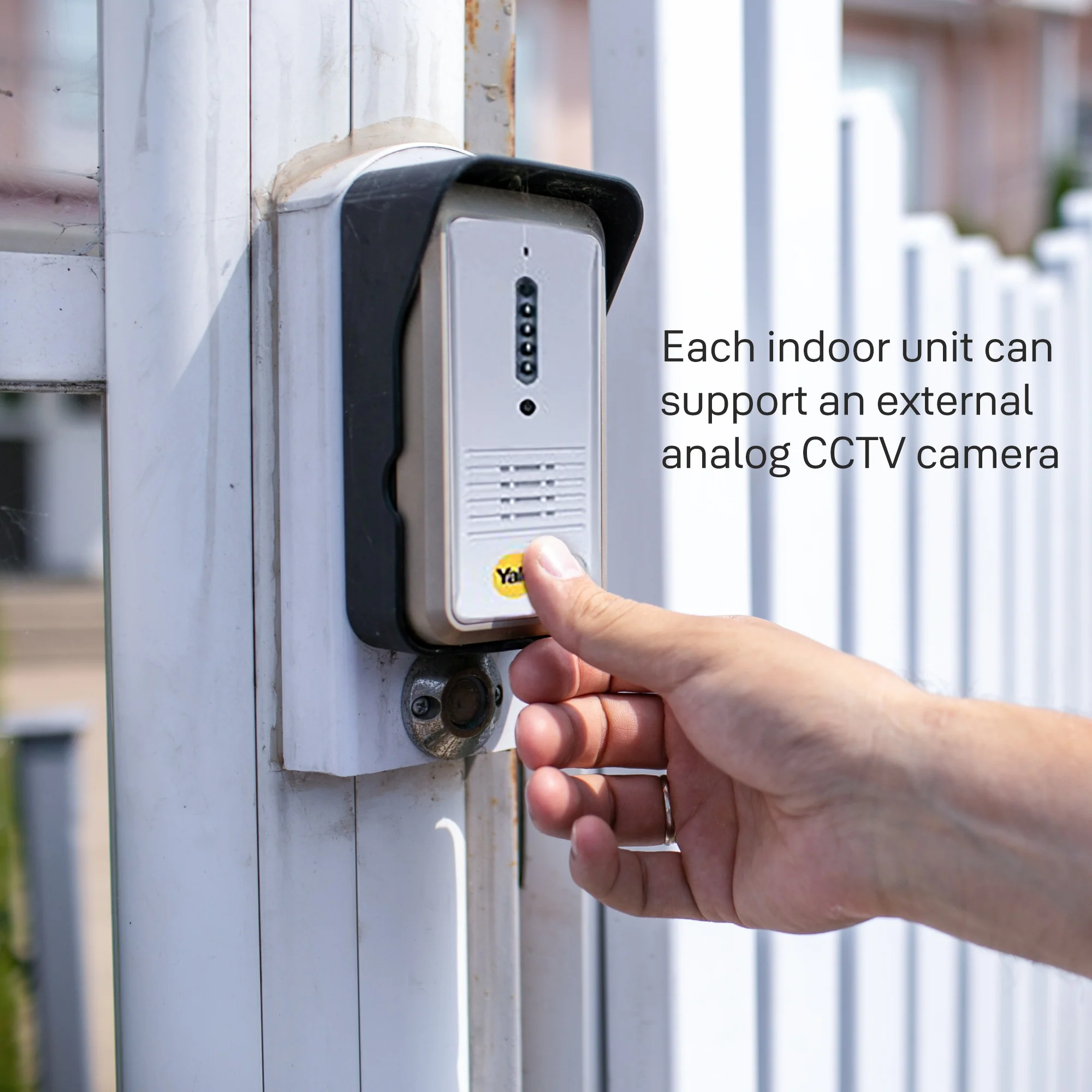

• JB 305 - E comes with slim design outdoor station & cast-aluminum outer panel. Each indoor unit can support an external analog CCTV camera.
• JB 305- E supports intercom, remote unlock and monitor the door.
• Input call be transferred from one indoor monitor to another.
• Adjustable talk volume and ringing volume.

Outdoor Unit
Panel	Aluminum, anti-vandal
Camera	1/4" color CMOS camera, Pin-hole
Night vision	White LEDs
Installation Type	Surface Mount
IP Rating	IP 54
Operating Temperature	-25～70℃
Weight ( Kg)	0.4
Dimensions( mm)	54.5*140.5*40
Indoor Unit
Panel	PMMA, white color
Display	7" TFT-LCD, 800*480 Pixels
Night vision	White LEDs
Installation Type	Surface Mount
Operating Temperature	-25～55℃
Weight ( Kg)	0.5
Dimensions( mm)	210*130*16
